Solar Water Heating System, Swimming Pool Solar Water Heater

FOB Reference Price:Get Latest Price
US $100-500 / Set | 1 Set/Sets as samples (Min. Order)
Supply Ability:
6000 Set/Sets per Month
Port:
Shanghai / Ningbo
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube, Evacuated Tube
Pressure:
Pressurized, Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, CSA, CCC, ISO9001,, CE,EN12975,SOLAR KEY MARK,ISO,CCC,CE,CSA, F378
Capacity:
700
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EJAI/ OEM
Model Number:
YYJ-S01-86-700D
Product name:
Solar Water Heating System, Swimming Pool Solar Water Heater
Application:
bath, thermal heating, swimming pool, school
Warranty:
10 years
Packaging & Delivery
Packaging Details
STANDARD EXPORT PACKING AND WOODEN PACKING FOR SAMPLE
Delivery Time
within 7-15 days

Specifications

Solar Heating System
1.EN12975&solar keymark
2.Anti-freezen
3.15Year Warranty for tube
4.Delivery:10 day

Solar Heating System



CHARACTERISTICS

1. Module design, arbitrary combination, harmony with the building perfectly

2. Intelligent control and automatic operation

3. Anti-freezing: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function

4. Work at anytime with excellent performance



Material

Inner Tank: SUS304 2B , 2.0mm -2.5mm thickness

Outer Tank: Galvanized steel alloy, 0.5mm thickness

Tank Heat Insulation Layer: Rock Wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

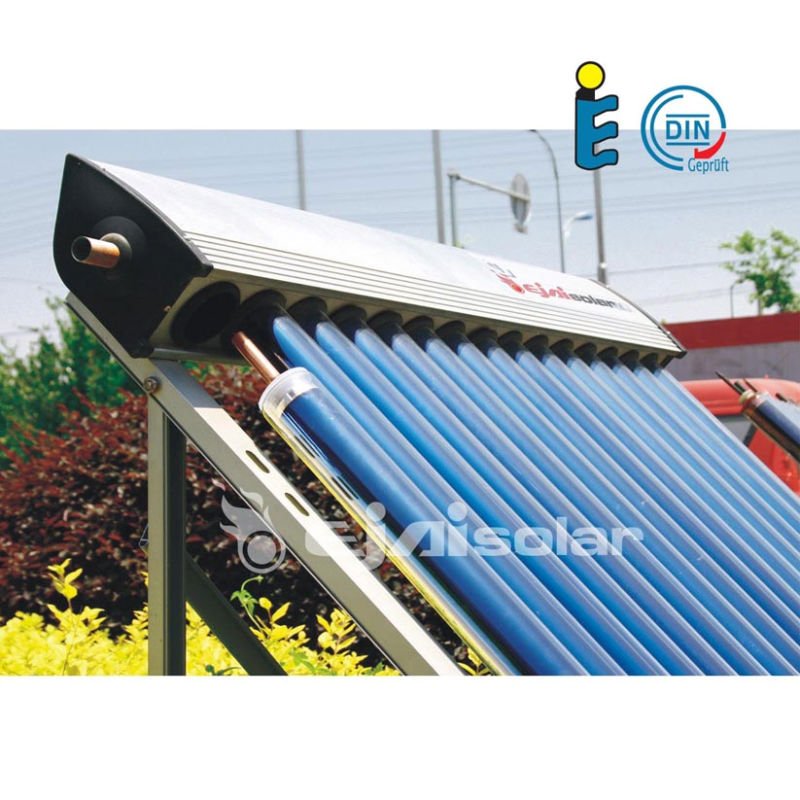

Solar collector: YYJ-C01 collector

Working station: Wilo circulation pump or Grundfos circulation pump,Flowing meter,Pressure gauge,Expansion vessel,controller

Working Temperature: 99 Celsius Degree

Working Pressure: 1.0Mpa (10 bars)

Warranty: 5 Years for the full system /15 Years for the vacuum tube



Solar Heating System



Model No.

Solar Vacuum Tube

Aperature  Area(m2)

Tank          Capacity

Loading Qty / sets

pcs

size / mm

20GP/40GP/40HQ

YYJ-S01-15-150S

15

Φ58 X 1800

1.44

150L

35/70/77

YYJ-S01-20-150S

20

Φ58 X 1800

1.92

150L

30/62/74

YYJ-S01-20-200S

20

Φ58 X 1800

1.92

200L

28/58/68

YYJ-S01-25-200S

25

Φ58 X 1800

2.40

200L

26/53/62

YYJ-S01-25-250S

25

Φ58 X 1800

2.40

250L

24/46/60

YYJ-S01-30-250S

30

Φ58 X 1800

2.88

250L

22/43/54

YYJ-S01-30-300S

30

Φ58 X 1800

2.88

300L

20/40/48

YYJ-S01-40-300S

40

Φ58 X 1800

3.84

300L

17/35/44

YYJ-S01-60-400S

60

Φ58 X 1800

5.76

400L

14/27/33

YYJ-S01-60-500S

60

Φ58 X 1800

5.76

500L

13/26/32



YYJ-S01-20-200D

20

Φ58 X 1800

1.92

200L

28/58/68

YYJ-S01-25-200D

25

Φ58 X 1800

2.40

200L

26/53/62

YYJ-S01-25-250D

25

Φ58 X 1800

2.40

250L

24/46/60

YYJ-S01-30-250D

30

Φ58 X 1800

2.88

250L

22/43/54

YYJ-S01-30-300D

30

Φ58 X 1800

2.88

300L

20/40/48

YYJ-S01-40-300D

40

Φ58 X 1800

3.84

300L

17/35/44

YYJ-S01-40-400D

40

Φ58 X 1800

3.84

400L

16/32/37

YYJ-S01-50-400D

50

Φ58 X 1800

4.80

400L

15/29/34

YYJ-S01-60-400D

60

Φ58 X 1800

5.76

400L

14/28/32

YYJ-S01-60-500D

60

Φ58 X 1800

5.76

500L

13/26/31

YYJ-S01-75-700D

75

Φ58 X 1800

7.20

700L

11/22/26



Remark:

1. S= Single coil tank system ,D=Double coil tank

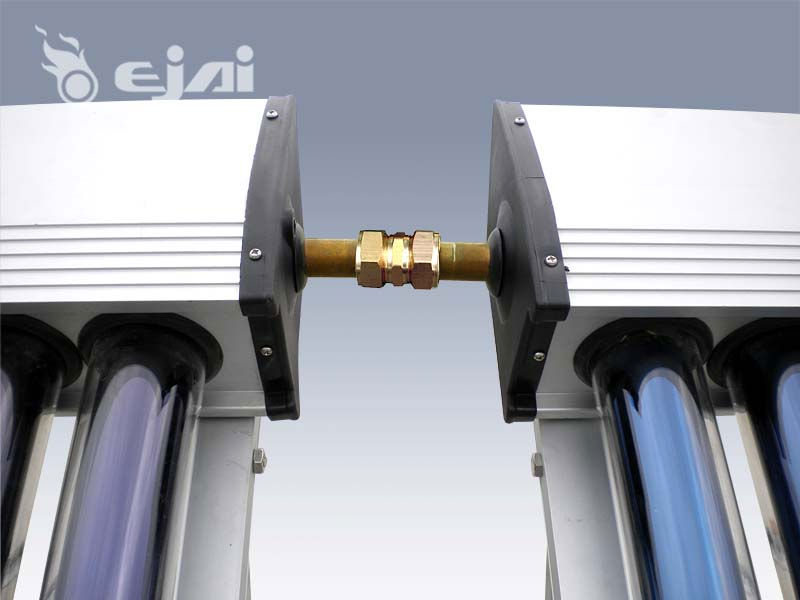

2. Manifold connection:22mm

3. Test Pressure(Pa):1Mpa

4. Max. service temperature(degree):95

5. Max. stagnation Temperature(degree):200.3

6. Flow range recommendation(50-150L/m2h

7. Min. collector angle(degree):15

8. Max. collector angle(degree):75
