Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Galvanized
  • Certification: CE, CSA, ISO CCC
  • Capacity: 150
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: EJAI or EOM
  • Model Number: YYJ-R01
  • Product Name: solar hot water heater
  • Application: solar hot water heater , bath, washing
  • Certificate: CCC,CE,ISO
  • Guarantee: 15 years
  • water temperature: 99 degree

Packaging & Delivery

Packaging Details Standard Export packing
Delivery Time 10 days after the payment

  2015 High quality 10 years warranty solar hot water heater systems

solar hot water Details



1. Solar energy water heater CHARACTERISTICS

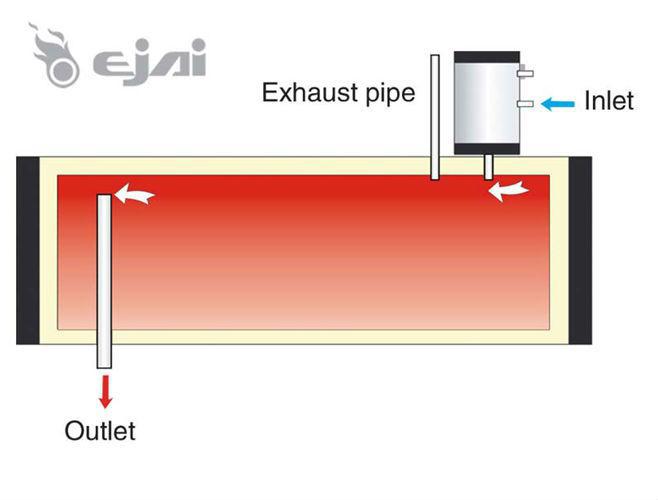

A). It takes advantage of the tap water’s pressure. More pressure more comfortable.

B). The water is heated in short time and meeting your demand for hot water.

C). It can produce more hot water than the general types with continuous hot water coming.





2. Solar hot water heater Material

A) Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

B) Outer tank: PVDF Coated Galvanized steel alloy,0.5mm thickness

C) Bracket:Aluminum alloy, 1.8mm thickness

D) Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

E) Working temperature: 99 celsius degree

F) Working pressure: 0.005Mpa (0.05 bars)

G )Accessory:Optional assistant tank and electrical heater

H) Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube

  Solar hot water heater specficaton:

Item No.

Solar Vacuum Tube

Absorber       Area(m2)

Tank           Capacity

Loading Qty / sets

pcs

size / mm

20GP/40GP/40HQ

YYJ-R011-18

18

Φ47 X 1500

1.69

110L

58/129/144

YYJ-R011-20

20

Φ47 X 1500

1.88

130L

53/118/133

YYJ-R011-24

24

Φ47 X 1500

2.26

160L

43/97/108

YYJ-R011-30

30

Φ47 X 1500

2.83

200L

35/77/87

YYJ-R011-36

36

Φ47 X 1500

3.40

250L

30/68/75



YYJ-R012-15

15

Φ58 X 1800

1.97

150L

43/86/100

YYJ-R012-18

18

Φ58 X 1800

2.36

180L

39/82/96

YYJ-R012-20

20

Φ58 X 1800

2.62

200L

34/72/84

YYJ-R012-24

24

Φ58 X 1800

3.15

240L

31/65/77

YYJ-R012-30

30

Φ58 X 1800

3.95

300L

22/50/58

YYJ-R012-36

36

Φ58 X 1800

4.75

360L

16/40/43



3. Solar energy water heater Remark:

A) Diameter of the tank: 360/460mm

B) Insulation thickness: 50mm

C) Vent connection: 1/2"

D) Electric heater connection: 47mm

E) Cold water inlet: 1/2"

F) Hot water outlet:3/4"

G) Installation angel: 30/45
