High Efficiency and Eco-friendly Swimming Pool Solar Collector,solar swimming pool heater

FOB Reference Price:Get Latest Price
US $130-450 / Sets | 1 Set/Sets as sample (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Aliumium
Certification:
CE, Solar keymark,EN12975,CSA,SRCC,,CE
Capacity:
250
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EJAI /OEM
Model Number:
YYJ-C01
Product Name:
High Efficiency and Swimming Pool Solar Collector,solar water heater
Pipe Material:
Glass
Application:
solar water heating swimming pool,bathing,thermal heating
Guarantee:
5 years for whole system
Certificate:
Solar Keymark,En12975,SRCC,CSA/F378
Supply Ability
Supply Ability:
8000 Set/Sets per Month at least
Packaging & Delivery
Packaging Details
Standard Export Carton for Full Container, Wooden Packing for Sample
Port
Shanghai & Ningbo
Lead Time :
7-15 Days

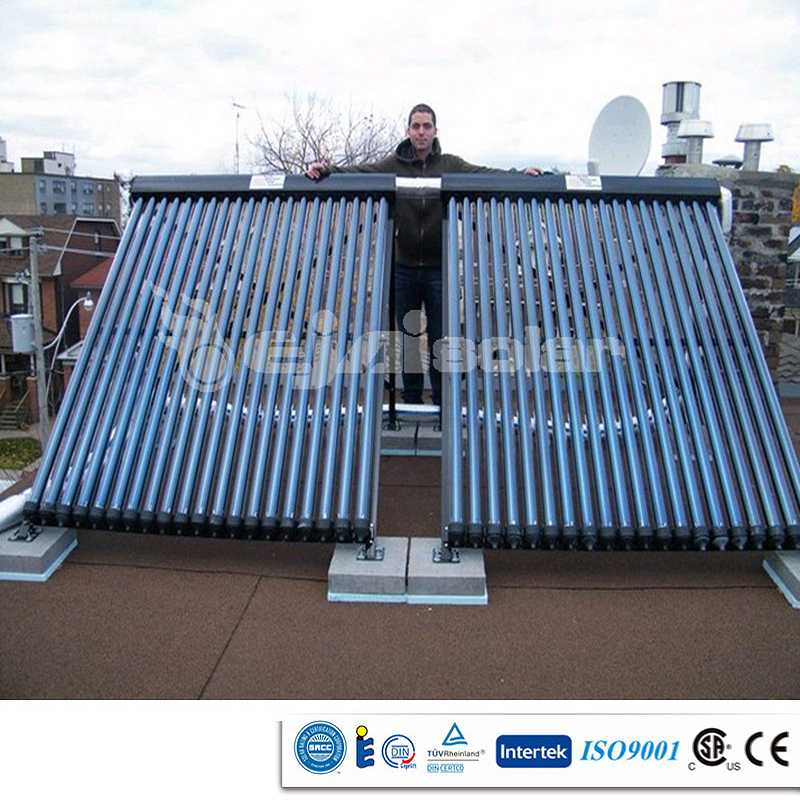

Swimming Pool Solar Heater



CHARACTERISTICS

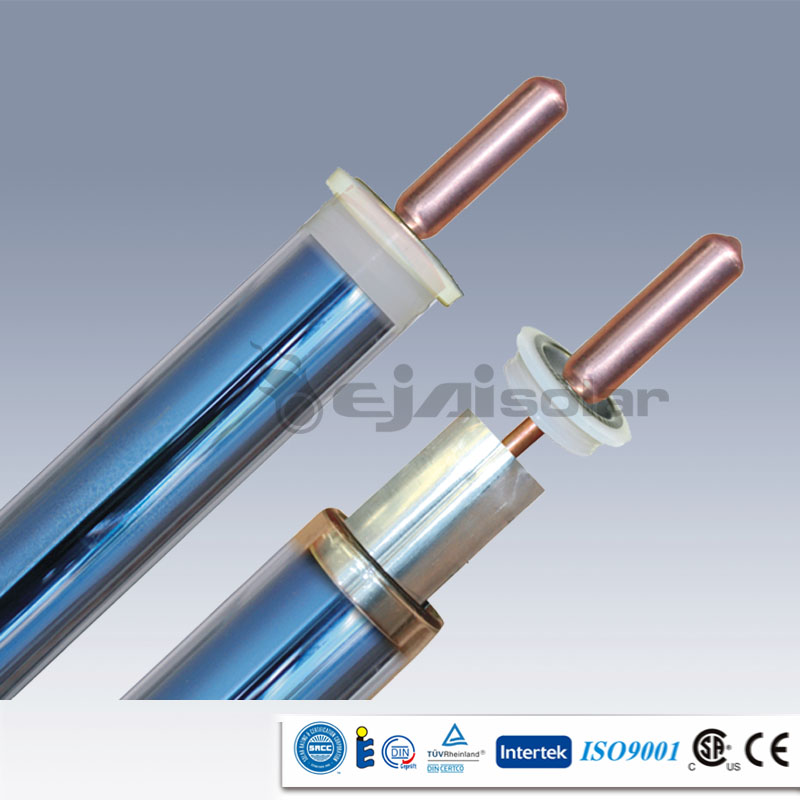

1. Water is rapidly heated by the heat pipe.

2. There is no water in the vacuum tube, so the tube will not break in winter.

3. The small size of the collector allows for versatile architectonic integration

4. Collector can be combined with existing pipeline.

5. The collector can operate even in case of a broken tube. A single tube can, if necessary, be exchanged with     out interruption of the heating cycle.



199



Material

Following passage: High quality red copper (TU1),1.2mm thickness

Our Chest: Aluminum alloy

Heat insulation layer: Rock wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

Working Temperature: 99 Celsius degree

Working pressure: 1.0Mpa (10 bars)

Color: Metal gray, Coffee brown,Shinning black

Warraanty: 5 years for the full system/15 years for vacuum tube

Swimming Pool Solar Heater

302


187

84

4




Swimming Pool Solar Heater





Item No.

Solar Vacuum Tube

Aperture  Area(m2)

Daily Output                     ( 50-90 oC )

Loading Qty / sets

pcs

size / mm

coating

20GP/40GP/40HQ

YYJ-C01-10

10

Φ58 X 1800

Cu-S/S-AL-N

Heat Pipe

0.96

80-100L

130/286/303

YYJ-C01-15

15

Φ58 X 1800

1.44

120-150L

115/253/285

YYJ-C01-20

20

Φ58 X 1800

1.92

160-200L

87/193/217

YYJ-C01-25

25

Φ58 X 1800

2.40

200-250L

70/157/175

YYJ-C01-30

30

Φ58 X 1800

2.88

240-300L

57/126/141



Remark:

1. Heat pipe vacuum tube solar collector

2. Manifold connection:22mm

3. Test Pressure(Pa):1Mpa

4. Max. service temperature(degree):95

5. Max. stagnation Temperature(degree):200.3

6. Flow range recommendation(50-150L/m2h

7. Min. collector angle(degree):15

8. Max. collector angle(degree):75



Swimming Pool Solar Heater



126546_

BRIEF INTRODUCTION OF EJAI COMPANY 2__22.jpg

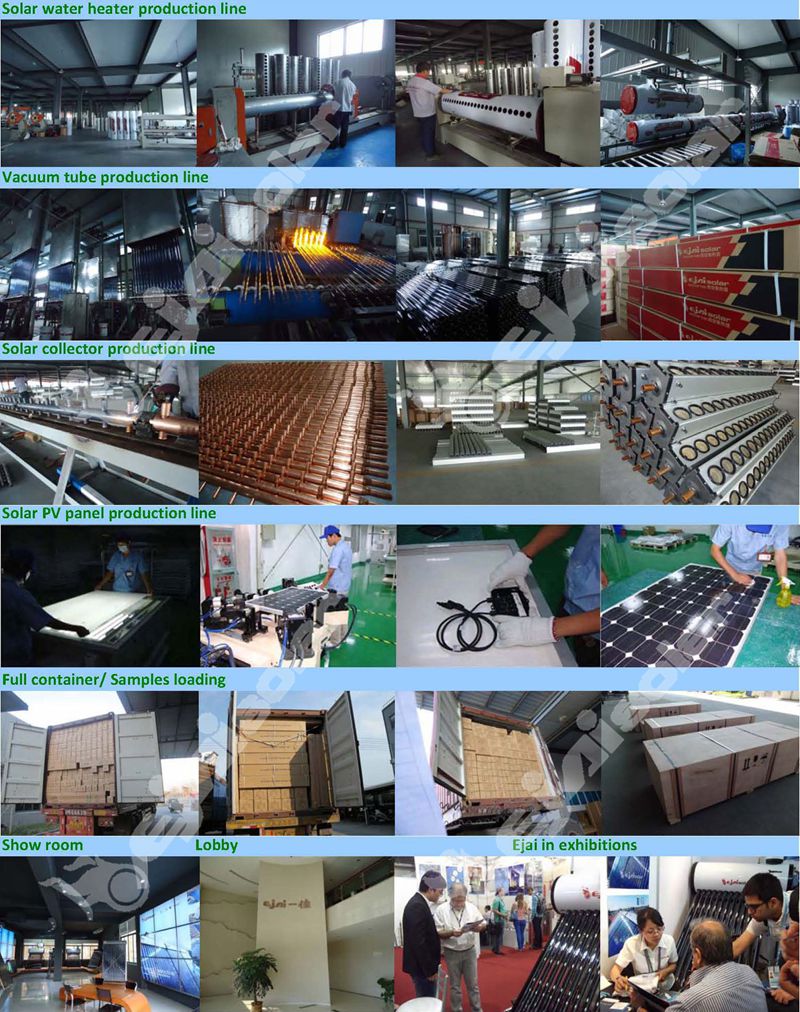

BRIEF INTRODUCTION OF EJAI COMPANY 2__12.jpg
