SRCC CE SOLAR KEYMARK CSA Heat pipes solar thermal collector

FOB Reference Price:Get Latest Price
2 Piece/Pieces As sample. (Min. Order)
Supply Ability:
6000 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ejai solar or OEM
Model Number:
YYJ-C01-20
Type:
Manifold Collector, Manifold Collector
Application:
Solar Thermal, bathroom,heating system,Swimming pool, hotel
Pipe Material:
Glass
Product name:
Heat pipes solar thermal collector
Colour:
Black,silver
Housing Material:
Aluminium Alloy
Hail resistance:
30mm
Installation:
flat roof/ incline roof
Min working temperature:
Antifreezing -40 degree
Vacuum tube size:
58mm*1800mm
Following Passage:
TU1 purified copper heat pipe
Packaging & Delivery
Packaging Details
Standard export cartons
Delivery Time
Within 15 days after receiving the deposit

Specifications

Solar thermal collector
1.CE,SOLAR KEYMARK,SRCC,CSA
2.TU1 purified copper heat pipe
3.15 Years warranty

Heat pipes solar thermal collector



Heat pipes solar thermal collector Characteristics:

1. Water is rapidly heated by the heat pipe.

2. There is no water in the vacuum tube, so the tube will not break in winter.

3. The small size of the collector allows for versatile architectonic integration

4. Collector can be combined with existing pipeline.

5. The collector can operate even in case of a broken tube. A single tube can, if necessary, be exchanged without interruption of the heating cycle.

6.Aluminum silicate which resist high temperature up to 1000 degree.

7. Installation is much faster, free maintenance.

8.Looks more stylish, stronger and nicer.



Heat pipes solar thermal collector Technical Specifications:

Following Passage

High quality red copper (TU1)

Manifold Casing Material

Aluminum alloy

Header Pipe Material

Copper

HeaPipe Material

Copper

Heat Insulation Layer

Rock wool or polyurethane foam

Bracket Material

Aluminum Alloy or galvanized steel

Collector Mounting

Flat Roof or Inclined Roof

Color of Bracket &Manifold

Silver grey,Shinning black

Working Temperature

99 Celsius degree

Working pressure

1.0Mpa (10 bars)



Heat pipes solar thermal collector Models:

Item No.

Solar Vacuum Tube

Aperture

Area(m2)

Daily Output( 50-90 oC )

Loading Qty / sets

pcs

size / mm

coating

20GP/40GP/40HQ

YYJ-C01-10

10

Φ58 X 1800

Cu-S/S-AL-N

Heat Pipe

0.96

80-100L

130/286/303

YYJ-C01-15

15

Φ58 X 1800

1.44

120-150L

115/253/285

YYJ-C01-20

20

Φ58 X 1800

1.92

160-200L

87/193/217

YYJ-C01-25

25

Φ58 X 1800

2.40

200-250L

70/157/175

YYJ-C01-30

30

Φ58 X 1800

2.88

240-300L

57/126/141

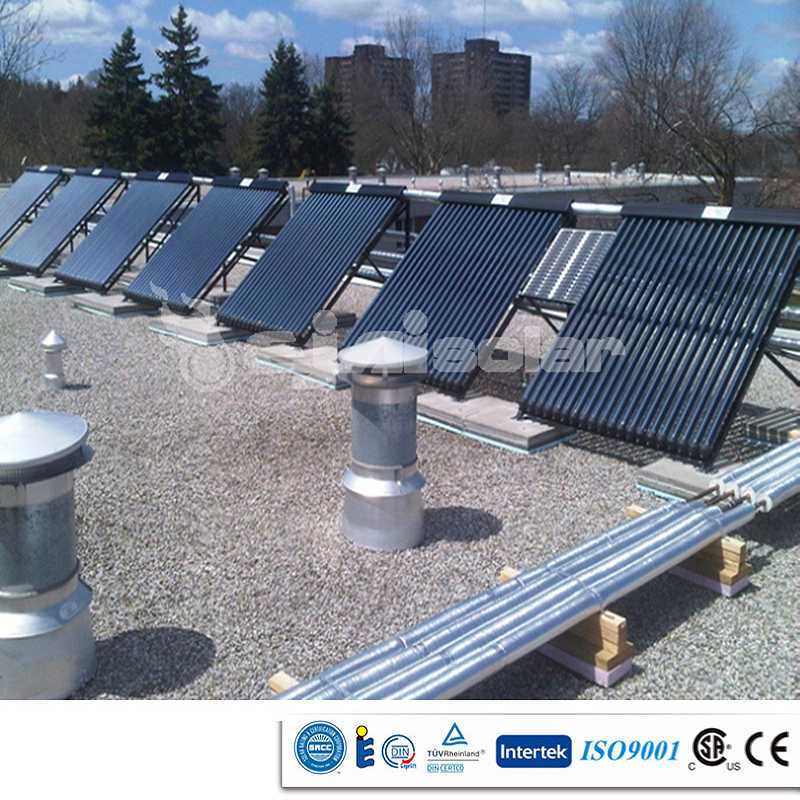

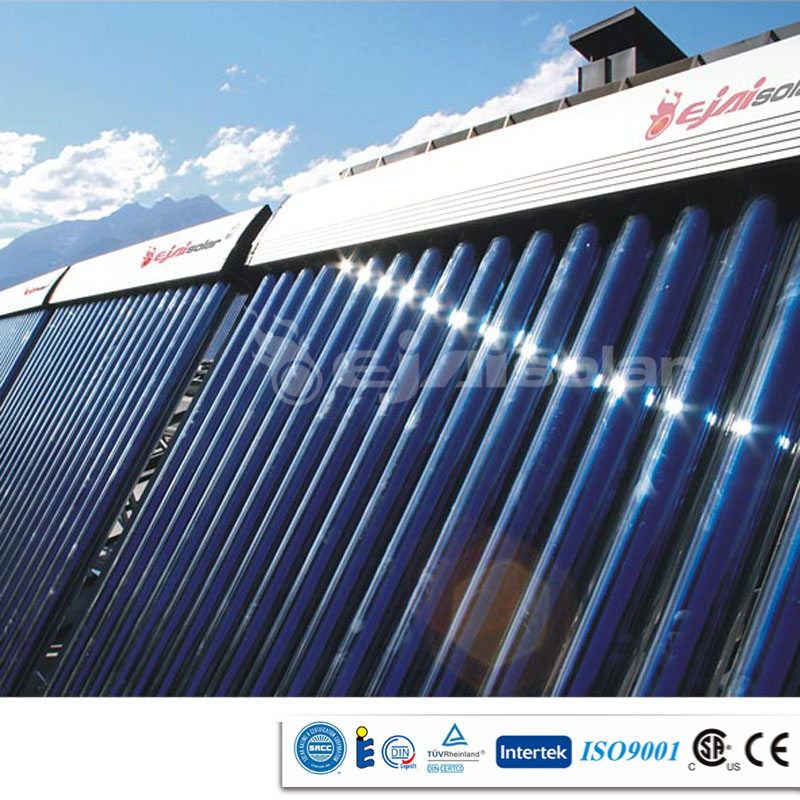

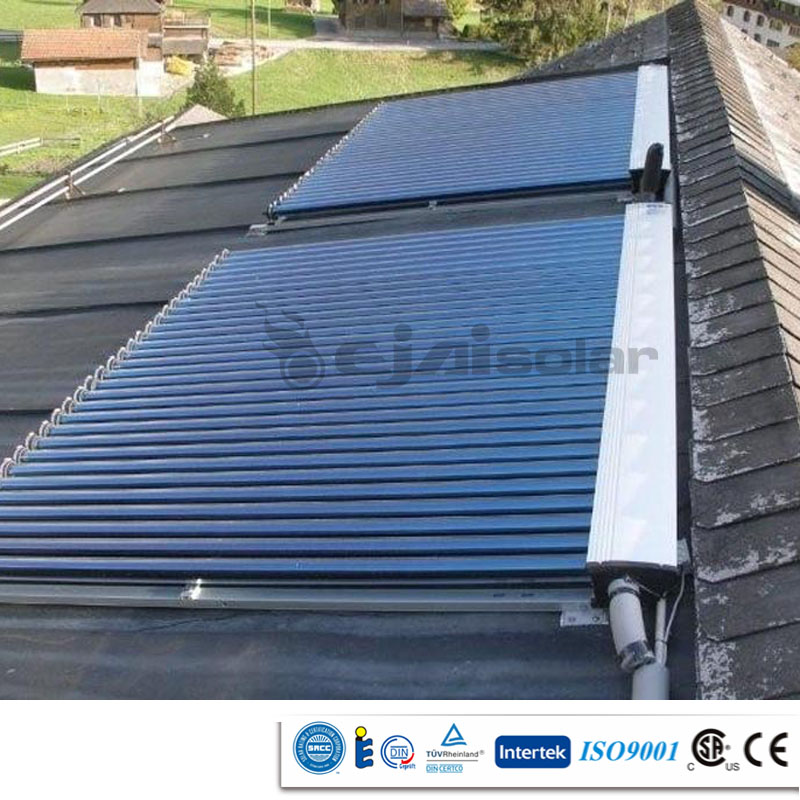

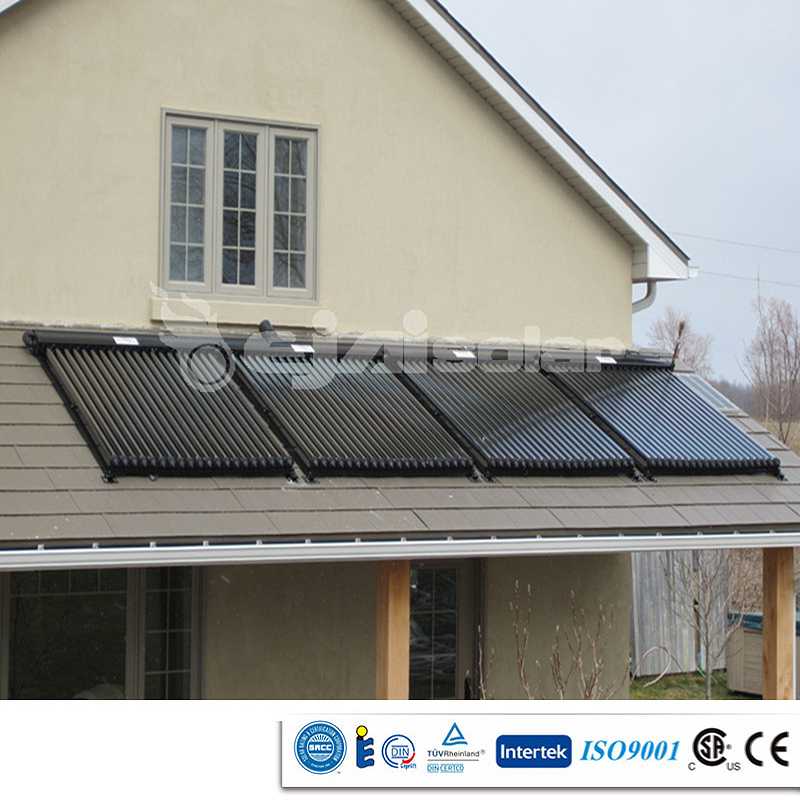

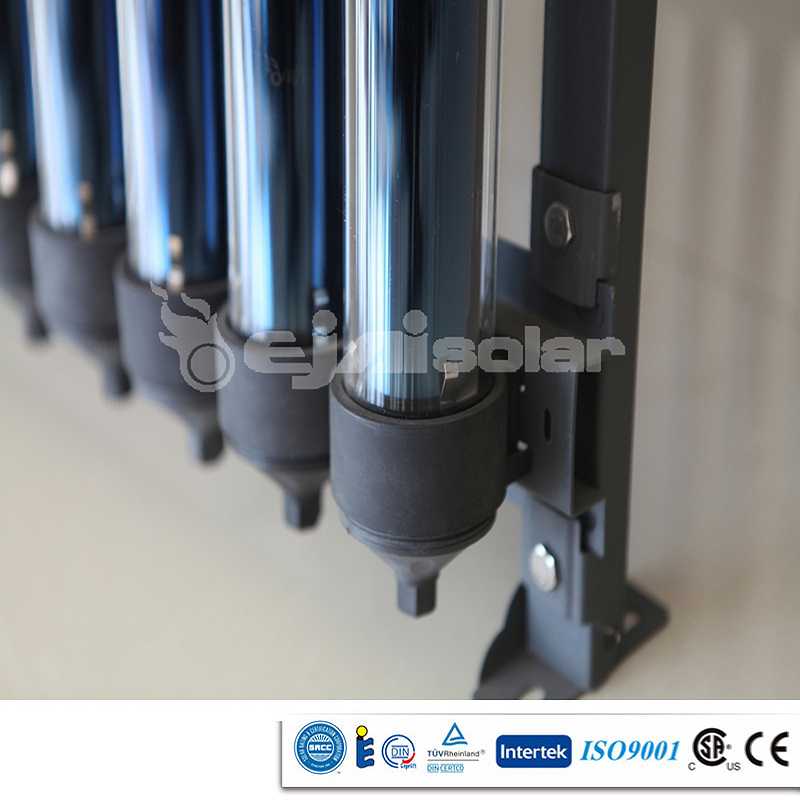

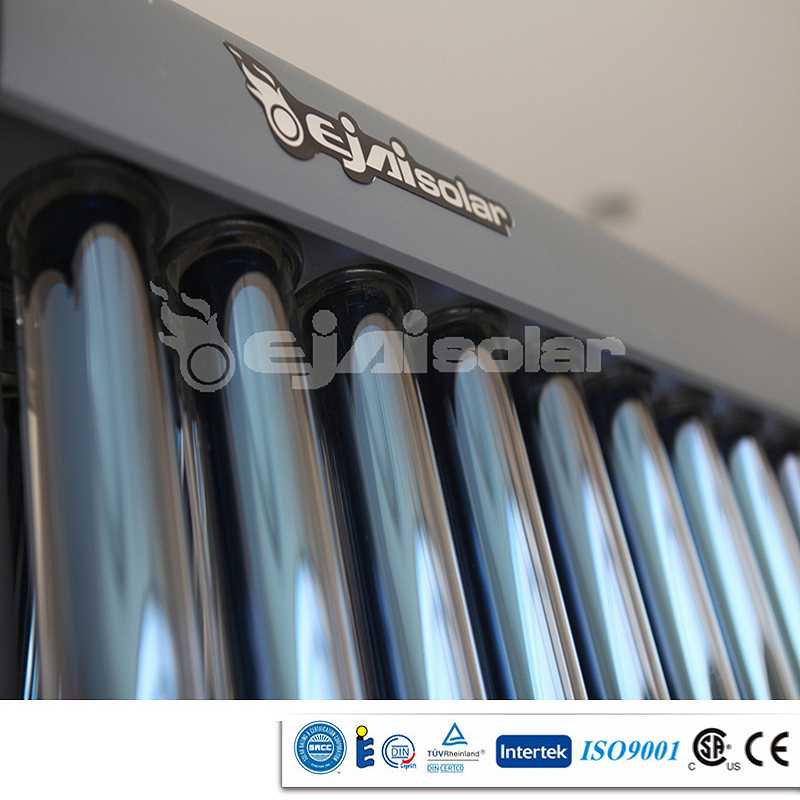

Heat pipes solar thermal collector Pictures:
