Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Ejai solar / OEM
  • Model Number: YYJ-C01
  • Type: Vacuum Solar Collector
  • Application: Water Heater, Swimming pool,hot water,bathroom
  • Pipe Material: Glass + copper
  • Product: Solar Thermal
  • Guarantee: 5 years for whole system, 15 years for vacuum tubes
  • Delivery: Within 15 days
  • Packing: Standard export carton for full container
  • OEM: Provide
  • Logo: Ejai solar or your own logo
  • Heat insulation layer: Rock wool
  • Tube: TU1 red copper
  • Color: As per your request

Packaging & Delivery

Packaging Details: Standard export cartons for full container.Plywood packing for samples.
Delivery Detail: 7-15 days

Specifications

Solar Thermal
1.Antifreezen&pressurized
2.EN12975/Keymark,SRCC,CSA/F378,CE
3.5-year Guarantee
4.Manufacturer

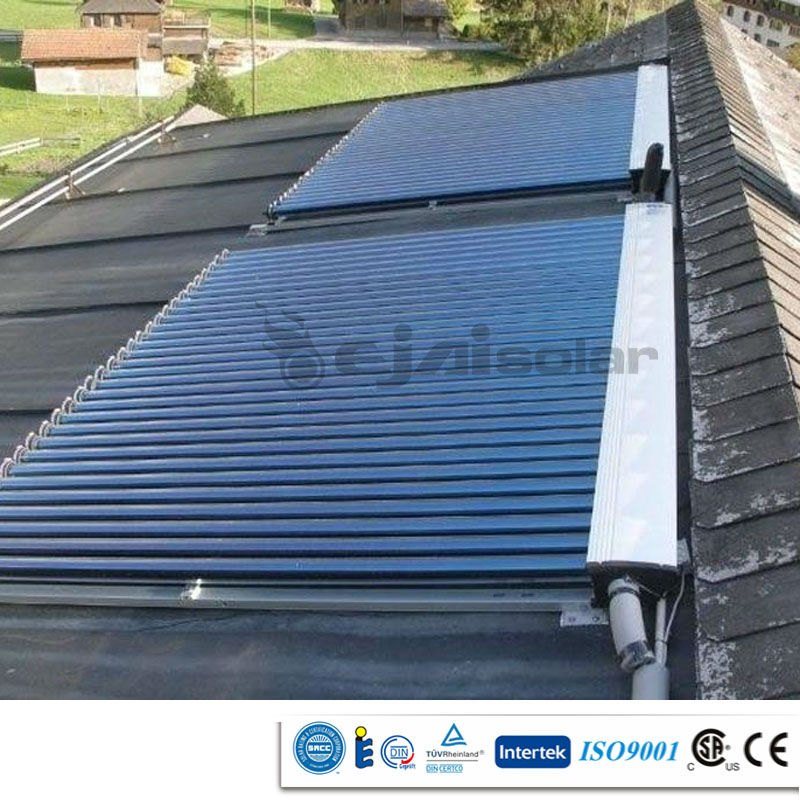

Heat Pipe Home Solar Thermal Collector



Solar Thermal Collector Characteristics



1. Water is rapidly heated by the heat pipe.

2. There is no water in the vacuum tube, so the tube will not break in winter.

3. The small size of the collector allows for versatile architectonic integration.

4. Collector can be combined with existing pipeline.

5. The collector can operate even in case of a broken tube. A single tube can, if necessary, be exchanged without interruption of the heating cycle.



 Solar Thermal Collector Material



Following passage: High quality red copper (TU1),1.2mm thickness

Our Chest: Aluminum alloy

Heat insulation layer: Rock wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

Working Temperature: 99 Celsius degree

Working pressure: 1.0Mpa (10 bars)

Color: Metal gray, Coffee brown,Shinning black

Warranty: 5 years for the full system/15 years for vacuum tube







Item No.



Solar Vacuum Tube

Aperture

Area(m2)

Daily Output( 50-90 oC )

Loading Qty / sets

pcs

size / mm

coating

20GP/40GP/40HQ

YYJ-C01-10

10

Φ58 X 1800

Cu-S/S-AL-N

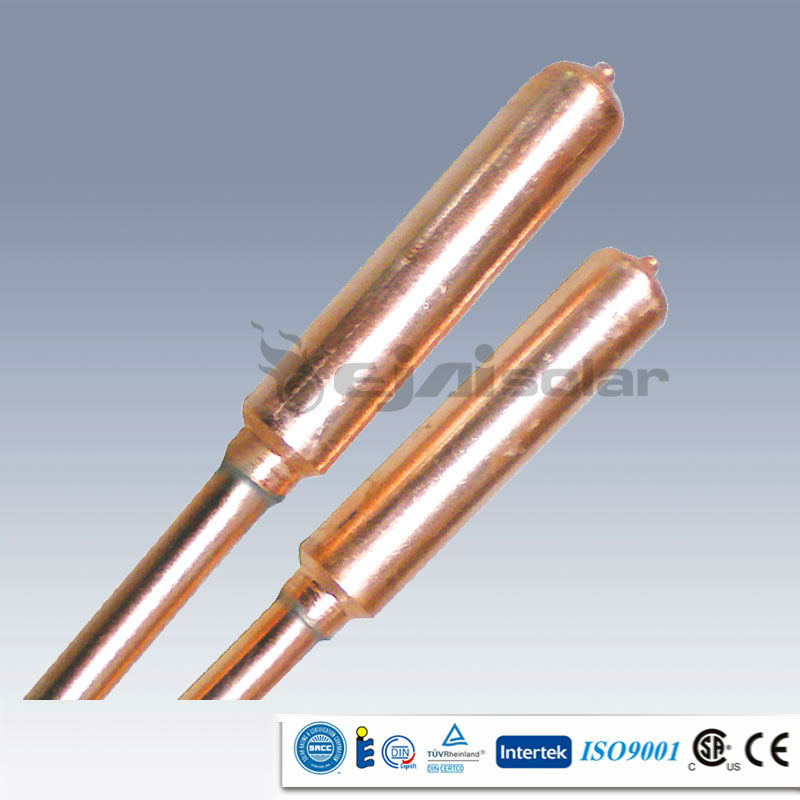

Heat Pipe



0.96

80-100L

130/286/303

YYJ-C01-15

15

Φ58 X 1800

1.44

120-150L

115/253/285

YYJ-C01-20

20

Φ58 X 1800

1.92

160-200L

87/193/217

YYJ-C01-25

25

Φ58 X 1800

2.40

200-250L

70/157/175

YYJ-C01-30

30

Φ58 X 1800

2.88

240-300L

57/126/141



 Solar Thermal Collector Remark

1. Heat pipe vacuum tube solar collector

2. Manifold connection:22mm

3. Test Pressure(Pa):1Mpa

4. Max. service temperature(degree):95

5. Max. stagnation Temperature(degree):200.3

6. Flow range recommendation:50-150L/m2h

7. Min. collector angle(degree):15

8. Max. collector angle(degree):75
