Copper Heat Pipe Pressurized Solar Collector

FOB Reference Price:Get Latest Price
US $100-2,000 / Sets | 1 Set/Sets as sample (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EJAI/OEM
Model Number:
C01 series
Type:
Vacuum Solar Collector, Evacuated Tube
Application:
Water Heater
Pipe Material:
Glass
Product Name:
Solar Collector
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Installation:
Freestanding
Housing Material:
Aluminum alloy
Certification:
CE, SRCC, EN12975,Solar Keymark,SRCC,CE,CCC
Guarantee:
5 years for whole system, 15 years for vacuum tubes
Aplication:
Swimming pool,water heating, bathing,thermal heating
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Carton
Port
Shanghia/Ningbo
Lead Time :
Within 15 days

Specifications

Solar Collector:
1.CE/ISO/CCC
2.20 years life performance
3. Work well on 35 Celsius degree
4.5 year warranty

Copper Heat Pipe Pressurized Solar Collector

Features:



Evacuated tube heat pipe solar collectors represent a new standard in solar energy technology. Combin­ing cutting-edge performance and efficiency with highly competitive pricing

Through numerous design innovtions, Evacuated tube collectors use a vacuum space within each tube’s borosilicate glass shell to offer unsurpassed efficiency and heat loss protection in any climate. In the event of a tube breaking, it can be removed and the entire system will continue to function, ensuring a heating source that will not fail.

Evacu­ated Tube Collectors shine becuase of their incredible freeze protection and unique 360 degree collector design.

solar collectors are independently tested and certified by the world’s leading solar energy authorities to ensure that each product is a global leader in reliability, heat output, and return on investment.



Copper Heat Pipe Pressurized Solar Collector

Applications:

Domestic Hot Water

• Radiant Floor/Space Heating

• Solar Pool, Spa & Hot Tub Heating

• Residential SHW Systems

• Commercial SHW Systems

• Industrial SHW Systems

• Municipal SHW Systems

• Agricultural SHW Systems



Copper Heat Pipe Pressurized Solar Collector Material:



Following passage: High quality red copper (TU1),1.2mm

thickness

Our Chest: Aluminum alloy

Heat insulation layer: Rock wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

Working Temperature: 99 Celsius degree

Working pressure: 1.0Mpa (10 bars)

Color: Metal gray, Coffee brown,Shinning black

Warraanty: 5 years for the full system/15 years for vacuum tube



Item No.

Solar Vacuum Tube

Aperture Area(m2)

Daily Output                     ( 50-90 oC )

Loading Qty / sets

pcs

size / mm

coating

20GP/40GP/40HQ

YYJ-C01-10

10

Φ58 X 1800

Cu-S/S-AL-N   HeatPipe

0.96

80-100L

130/286/303

YYJ-C01-15

15

Φ58 X 1800

1.44

120-150L

115/253/285

YYJ-C01-20

20

Φ58 X 1800

1.92

160-200L

87/193/217

YYJ-C01-25

25

Φ58 X 1800

2.40

200-250L

70/157/175

YYJ-C01-30

30

Φ58 X 1800

2.88

240-300L

57/126/141





Copper Heat Pipe Pressurized Solar Collector

Remark:



1. Heat pipe vacuum tube solar collector

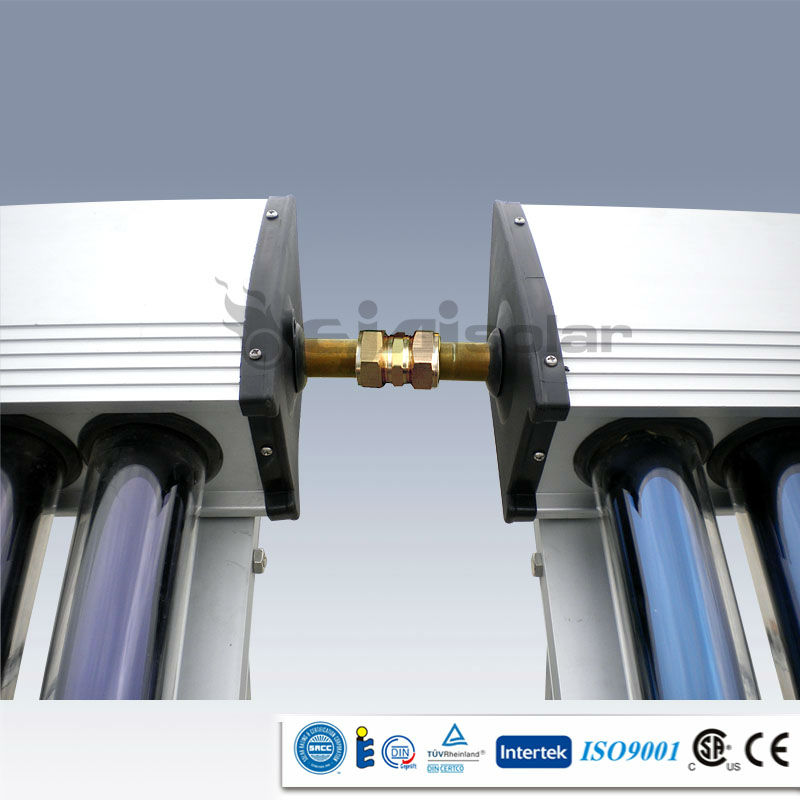

2. Manifold connection:22mm



3. Test Pressure(Pa):1Mpa



4. Max. service temperature(degree):95



5. Max. stagnation Temperature(degree):200.3



6. Flow range recommendation(50-150L/m2h



7. Min. collector angle(degree):15



8. Max. collector angle(degree):75



Copper Heat Pipe Pressurized Solar Collector:
