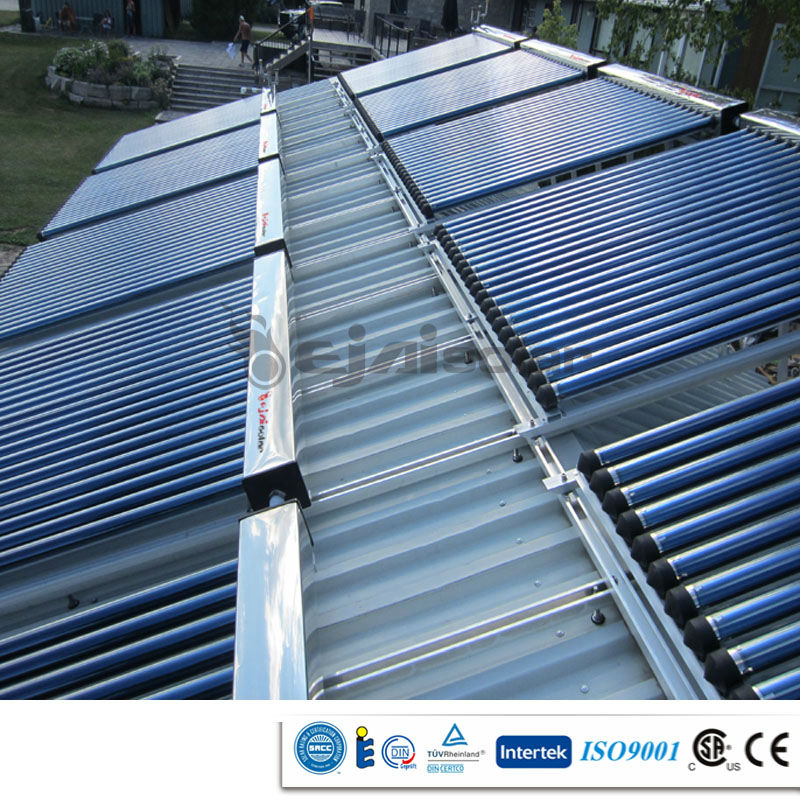

Vacuum Tube Solar Energy System Thermal Solar Collector

FOB Reference Price:Get Latest Price
US $200-600 / Set | 1 Set/Sets as sample (Min. Order)
Supply Ability:
6000 Set/Sets per Month
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ejai solar / OEM
Model Number:
YYJ-C01
Type:
Vacuum Solar Collector
Application:
Solar Thermal
Pipe Material:
Glass
Product name:
Vacuum Tube Solar Energy System Thermal Solar Collector
Available Tubes:
10 tubes to 30 tubes
Tube size:
58*1800mm
Bracket Material:
Aluminum Alloy
Bracket color:
As per your request
Heat insulation layer:
Rock wool
Tube:
TU1 red copper
Use:
House heating,swimming pool,washing
Warranty:
5 years for full system
Logo:
Ejai solar or your own logo
Packaging & Delivery
Packaging Details
Standard export cartons for full container.Plywood packing for samples.
Delivery Time
Within 10 days

Specifications

Solar Energy System
1.Antifreezen&pressurized
2.EN12975/Keymark,SRCC,CSA/F378,CE
3.5-year Guarantee
4.Manufacturer

Vacuum Tube Solar Energy System Thermal Solar Collector



Thermal Solar Collector Features

1. Water is rapidly heated by the heat pipe.

2. There is no water in the vacuum tube, so the tube will not break in winter.

3. The small size of the collector allows for versatile architectonic integration

4. Collector can be combined with existing pipeline.

5. The collector can operate even in case of a broken tube. A single tube can, if necessary, be exchanged without interruption of the heating cycle.



Thermal Solar Collector Specification

Following passage: High quality red copper (TU1),1.2mm thickness

Our Chest: Aluminum alloy

Heat insulation layer: Rock wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

Working Temperature: 99 Celsius degree

Working pressure: 1.0Mpa (10 bars)

Color: Metal gray, Coffee brown,Shinning black

Warranty: 5 years for the full system/15 years for vacuum tube





Remark of Thermal Solar Collector

1. Heat pipe vacuum tube solar collector

2. Manifold connection:22mm

3. Test Pressure(Pa):1Mpa

4. Max. service temperature(degree):95

5. Max. stagnation Temperature(degree):200.3

6. Flow range recommendation:50-150L/m2h

7. Min. collector angle(degree):15

8. Max. collector angle(degree):75





Item No.

Solar Vacuum Tube

Aperture

Area(m2)

Daily Output( 50-90 oC )

Loading Qty / sets

pcs

size / mm

coating

20GP/40GP/40HQ

YYJ-C01-10

10

Φ58 X 1800

Cu-S/S-AL-N

Heat Pipe

0.96

80-100L

130/286/303

YYJ-C01-15

15

Φ58 X 1800

1.44

120-150L

115/253/285

YYJ-C01-20

20

Φ58 X 1800

1.92

160-200L

87/193/217

YYJ-C01-25

25

Φ58 X 1800

2.40

200-250L

70/157/175

YYJ-C01-30

30

Φ58 X 1800

2.88

240-300L

57/126/141
