Quick Details

  • Type: Evacuated Tube
  • Pressure: Pressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Galvanized steel alloy
  • Certification: CE, CCC,ISO
  • Capacity: 300
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Ejai solar / OEM
  • Model Number: YYJ-IP01
  • Product name: Vacuum Tube Heat Pipe Solar Water Heater
  • Tubes: 15 tubes to 30 tubes
  • Inner tank: Food Grade Stainless steel
  • Bracket color: As per your request
  • Collector: Heat pipe vacuum tube
  • Accessories: Mag bar,Pressure relief valve,air vent
  • Hail resistance: 25mm
  • Application: Bathroom or kitchen or swimming pool
  • Delivery time: 7-15 days
  • Bracket Angle: 30/45

Packaging & Delivery

Packaging Details: Standard export cartons for full container.Plywood packing for samples.
Delivery Detail: Within 7-15 days

Specifications

Pressurized Solar Water Heater
1.Heat pipe vacuum tube
2.High pressure
3.Warranty:5 years
4.Manufacturer

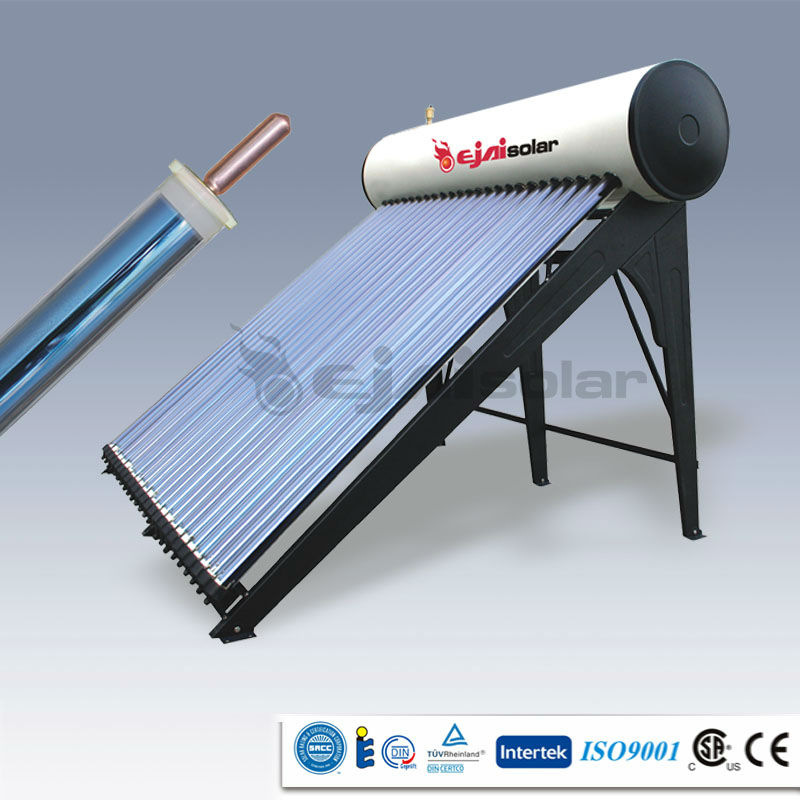

Vacuum Tube Heat Pipe Pressurized Solar Water Heater



Pressurized Solar Water Heater Characteristics

1. Working with high pressure

2. Use heat pipe vacuum tube for deliver heat energy, Shorten the time for heating water

3. Hot water coming out with pressure

4. No limitation for the installation position

5. Each tube work alone so it can work even if one of the tube is broken

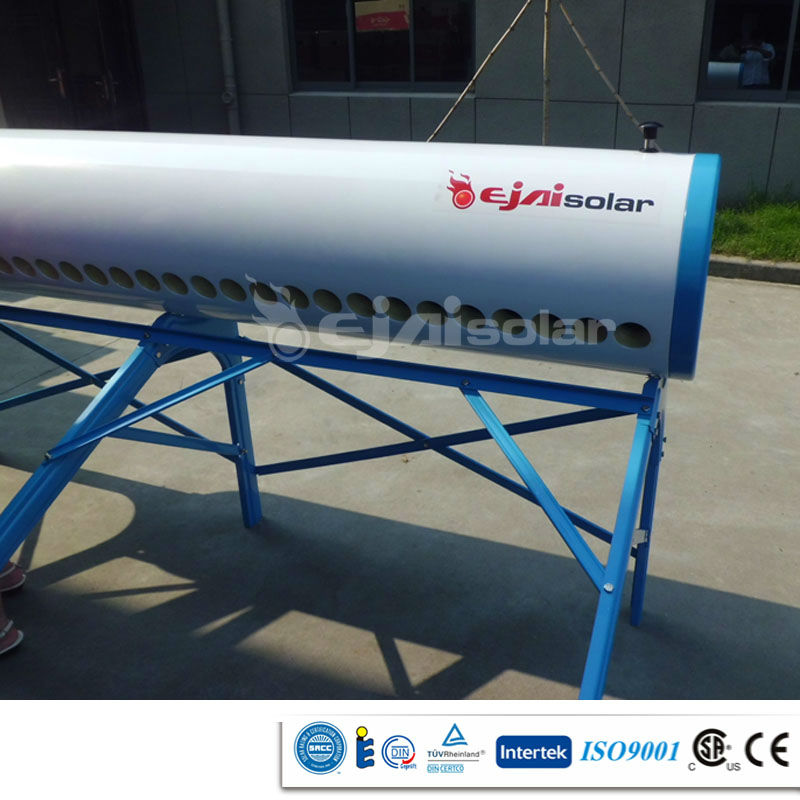

Pressurized Solar Water Heater Material

Inner tank: Imported stainless steel (SUS304/2B), 2mm - 2.5mm thickness

Outer tank: Galvanized steel alloy, 0.5mm thickness

Bracket: Galvanized steel alloy, 1.6mm thickness

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Heat Pipe: high quality straight red copper pipe

Working temperature: 99 Celsius degree

Working pressure: 0.6Mpa (6 bars)

Color: As per customer's request

Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube



Pressurized Solar Water Heater Remark

1. Diameter of the tank: 360/460mm

2. Insulation thickness: 50mm

3. Vent Connection: 1/2"

4. Electric heater connection: 1"

5. Water connections: 3/4"

6. Installation angel: 30/45

7. Test Pressure: 1Mpa





Item No.

Solar Vacuum Tube

Tube

Coating

Absorber

Area (m2)

Tank

Capacity

Loading Qty / sets

 pcs

size / mm

20GP/40GP/40HQ

YYJ-IP01-15

15

Φ58 X 1800

Cu-S/S-AL/N

Heat Pipe

2.04

150L

47/95/111

YYJ-IP01-18

18

Φ58 X 1800

2.26

180L

42/81/92

YYJ-IP01-20

20

Φ58 X 1800

2.72

200L

34/72/84

YYJ-IP01-24

24

Φ58 X 1800

3.27

240L

31/65/77

YYJ-IP01-25

25

Φ58 X 1800

3.41

250L

28/55/65

YYJ-IP01-30

30

Φ58 X 1800

3.91

300L

26/50/60
