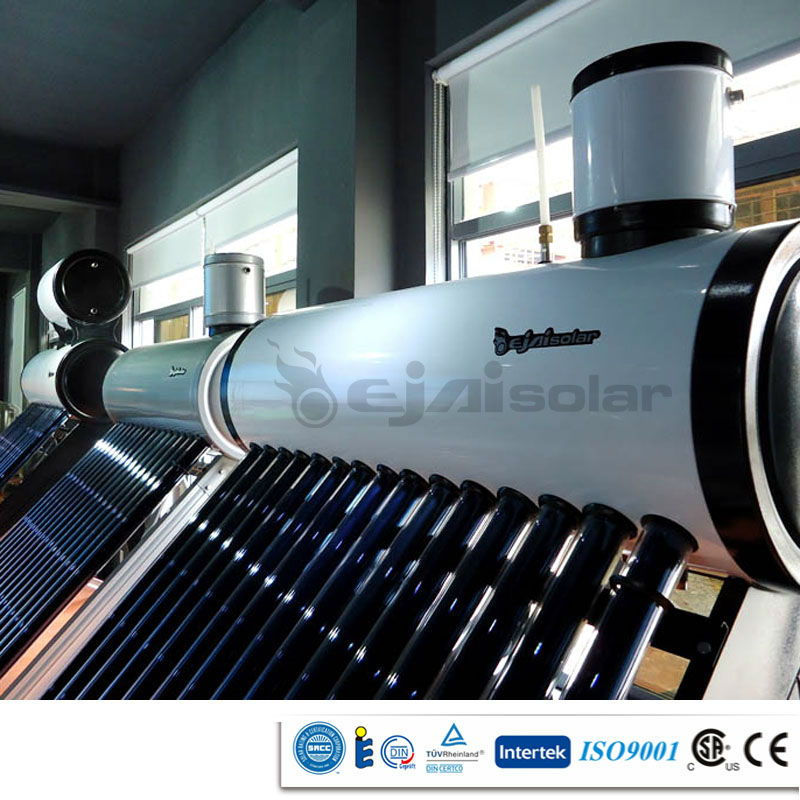

High Reflectivity of Solar Water Heater

FOB Reference Price:Get Latest Price
US $100-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, ISO,CCC
Capacity:
200, from 110L to 360L
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EJAI / OEM
Model Number:
YYJ-R01
Product Name:
Solar Water Heater
Application:
hot water, bath, shower, washing
Warranty:
5 years
SupplyAbility
SupplyAbility:
6000 Set/Sets per Month
Packaging & Delivery
Packaging Details
STANDARD EXPORT PACKING
Port
Shanghai/Ningbo
Lead Time :
within 15 days

Specifications

Solar Water Heater:
1.Economic non pressure system
2.SUS304 Inner tank
3.CCC,CE,ISO
4.delivery:10-15days

High Reflectivity of Solar Water Heater

CHARACTERISTICS:



1. It takes advantage of the tap water’s pressure. More pressure more comfortable.

2. The water is heated in short time and meeting your demand for hot water.

3. It can produce more hot water than the general types with continuous hot water coming.



High Reflectivity of Solar Water Heater

Material:

Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

Outer tank: PVDF Coated Galvanized steel alloy,0.5mm thickness

Bracket:Aluminum alloy, 1.8mm thickness

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Working temperature: 99 celsius degree

Working pressure: 0.005Mpa (0.05 bars)

Accessory:Optional assistant tank and electrical heater

Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube



ITEM NO.QTY. OF TUBETANK'S CAPACITYTUBE SIZE/MMFOR PEOPLE TO USEQTY IN CONTAINER
20GP40GP40HQ
YYJ-R01-1515150L58mm*1800mm3~44292113
YYJ-R01-2020200L58mm*1800mm4~5377390
YYJ-R01-2525250L58mm*1800mm5~7286176
YYJ-R01-3030300L58mm*1800mm6~8235062
YYJ-R01-3636360L58mm*1800mm8~10194252


High Reflectivity of Solar Water Heater

Remark:

1. Diameter of the tank: 360/460mm

2. Insulation thickness: 50mm

2. Vent connection: 1/2"

4. Electric heater connection: 47mm

5.Cold water inlet: 1/2"

6. Hot water outlet:3/4"

7. Installation angel: 30/45



High Reflectivity of Solar Water Heater:
