Solar Collector Parabolic

FOB Reference Price:Get Latest Price
US $100-2,000 / Sets | 1 Set/Sets as sample (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, CSA, CCC ISO9001
Capacity:
700
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ejai & OEM
Model Number:
YYJ-S01
Product name:
Solar Collector Parabolic
Tube specification:
58mm*1800mm Cu/SS/ALN
Insulation:
Polyurethane foam
Application:
bath, thermal heating, swimming pool, school
Heat Pipe:
TU1 Copper
Supply Ability
Supply Ability:
7000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Stabdard Export Packing
Port
Shanghai /Ningbo
Lead Time :
within 15 days

Specifications

Solar Collector Parabolic
1.EN12975,solar Keymark
2.Anti-freeze
3.Guarantee:5years
4.Deliver time:Within15 days

Solar Collector Parabolic


CHARACTERISTICS

1. Module design, arbitrary combination, harmony with the building perfectly

2. Intelligent control and automatic operation

3. Anti-freezing: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function

4. Work at anytime with excellent performance

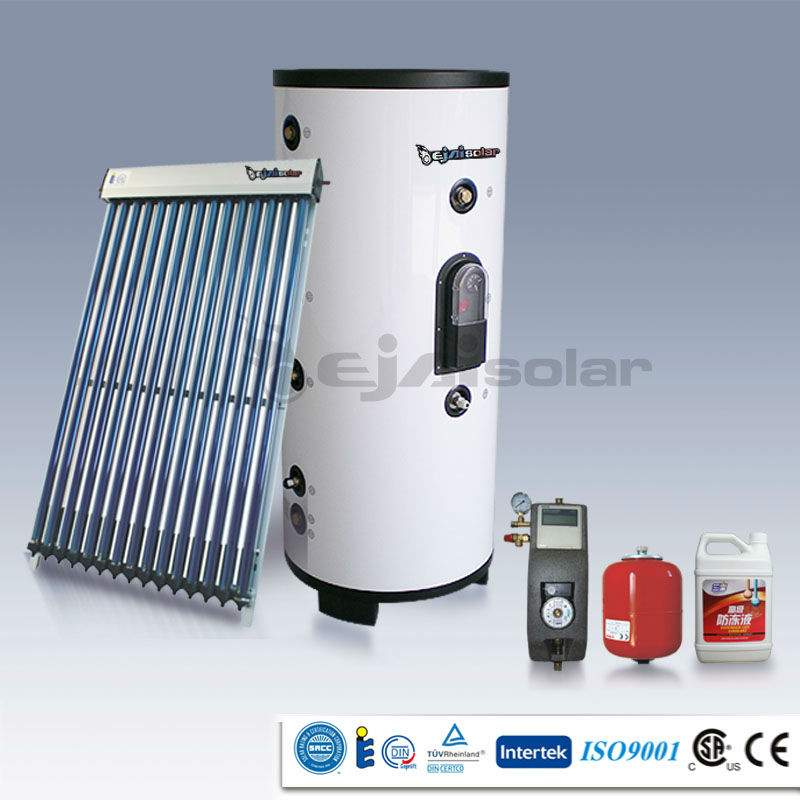

Solar Collector Parabolic



Material

Inner Tank: SUS304 2B , 2.0mm -2.5mm thickness

Outer Tank: Galvanized steel alloy, 0.5mm thickness

Tank Heat Insulation Layer: Rock Wool, 50mm thickness

Bracket: Aluminum Alloy, 1.8mm thickness

Solar collector: YYJ-C01 collector

Working station: Wilo circulation pump or Grundfos circulation pump,Flowing meter,Pressure gauge,Expansion vessel,controller

Working Temperature: 99 Celsius Degree

Working Pressure: 1.0Mpa (10 bars)

Warranty: 5 Years for the full system /15 Years for the vacuum tube



Model No.

Solar Vacuum Tube

Aperature  Area(m2)

Tank          Capacity

Loading Qty / sets

pcs

size / mm

20GP/40GP/40HQ

YYJ-S01-15-150S

15

Φ58 X 1800

1.44

150L

35/70/77

YYJ-S01-20-150S

20

Φ58 X 1800

1.92

150L

30/62/74

YYJ-S01-20-200S

20

Φ58 X 1800

1.92

200L

28/58/68

YYJ-S01-25-200S

25

Φ58 X 1800

2.40

200L

26/53/62

YYJ-S01-25-250S

25

Φ58 X 1800

2.40

250L

24/46/60

YYJ-S01-30-250S

30

Φ58 X 1800

2.88

250L

22/43/54

YYJ-S01-30-300S

30

Φ58 X 1800

2.88

300L

20/40/48

YYJ-S01-40-300S

40

Φ58 X 1800

3.84

300L

17/35/44

YYJ-S01-60-400S

60

Φ58 X 1800

5.76

400L

14/27/33

YYJ-S01-60-500S

60

Φ58 X 1800

5.76

500L

13/26/32



YYJ-S01-20-200D

20

Φ58 X 1800

1.92

200L

28/58/68

YYJ-S01-25-200D

25

Φ58 X 1800

2.40

200L

26/53/62

YYJ-S01-25-250D

25

Φ58 X 1800

2.40

250L

24/46/60

YYJ-S01-30-250D

30

Φ58 X 1800

2.88

250L

22/43/54

YYJ-S01-30-300D

30

Φ58 X 1800

2.88

300L

20/40/48

YYJ-S01-40-300D

40

Φ58 X 1800

3.84

300L

17/35/44

YYJ-S01-40-400D

40

Φ58 X 1800

3.84

400L

16/32/37

YYJ-S01-50-400D

50

Φ58 X 1800

4.80

400L

15/29/34

YYJ-S01-60-400D

60

Φ58 X 1800

5.76

400L

14/28/32

YYJ-S01-60-500D

60

Φ58 X 1800

5.76

500L

13/26/31

YYJ-S01-75-700D

75

Φ58 X 1800

7.20

700L

11/22/26



Solar Collector Parabolic


Remark:

1. S= Single coil tank system ,D=Double coil tank

2. Manifold connection:22mm

3. Test Pressure(Pa):1Mpa

4. Max. service temperature(degree):95

5. Max. stagnation Temperature(degree):200.3

6. Flow range recommendation(50-150L/m2h

7. Min. collector angle(degree):15

8. Max. collector angle(degree):75
