Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Aluminum alloy/Galvanized steel alloy
  • Certification: CE, CCC,ISO9001
  • Capacity: 300
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Ejai solar/OEM
  • Model Number: YYJ-R012
  • Product name: Solar water heating system
  • Application: Water heating,bathing,thermal heating
  • Certificate: ISO,CE,CCC
  • Guarantee: 5 years for the system
  • Delivery period: within 15 days
  • Delivery port: Shanghai or Ningbo

Packaging & Delivery

Packaging Details Standard export cartons for full container.Plywood packing for samples.
Delivery Time Within 7-15 days

Specifications

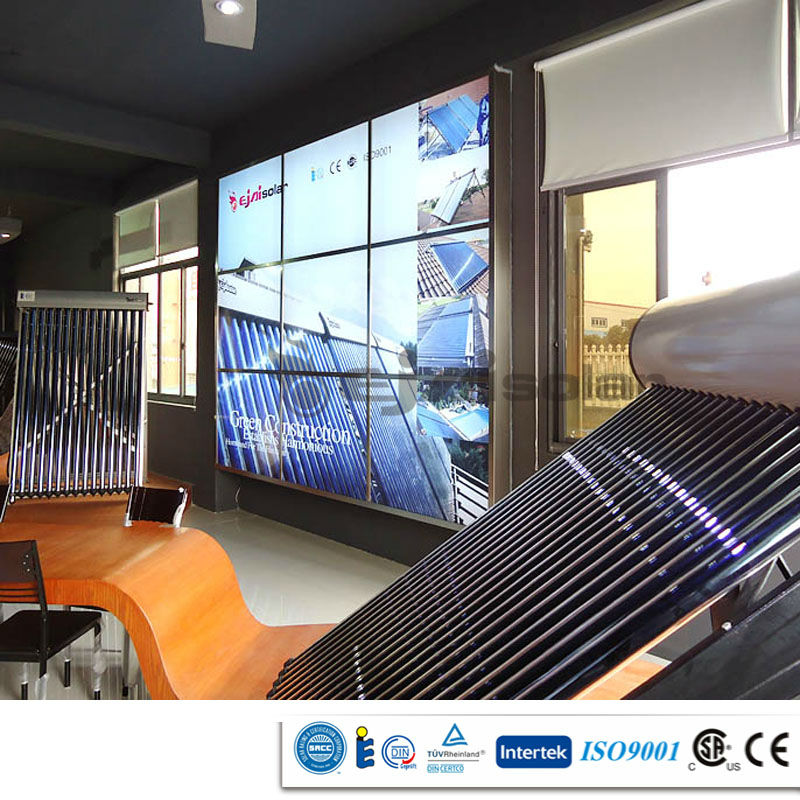

Solar water heating system
1.CCC,CE,ISO Certificated
2.SUS 304 Food grade tank
3.Hot water above 85degree
4. 5year warranty

Solar water heating system



  Solar water heating system Characteristics

1. It takes advantage of the tap water’s pressure. More pressure more comfortable.

2. The water is heated in short time and meeting your demand for hot water.

3. It can produce more hot water than the general types with continuous hot water coming.





  Solar water heating system Material

Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

Outer tank: PVDF Coated Galvanized steel alloy,0.4mm thickness

Bracket: Galvanized steel alloy, 1.5mm thickness

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Working temperature: 99 Celsius degree

Working pressure: 0.005Mpa (0.05 bars)

Accessory:Optional assistant tank and electrical heater

Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube



  Solar water heating system Remark

1. Diameter of the tank: 360/460mm

2. Insulation thickness: 50mm

3. Vent connection: 1/2"

4. Electric heater connection: 47mm

5. Cold water inlet: 1/2"

6. Hot water outlet:3/4"

7. Installation angel: 30/45





Item No.

Solar Vacuum Tube

Absorber

Area(m2)

Tank

Capacity

Loading Qty / sets

pcs

size / mm

20GP/40GP/40HQ

YYJ-R011-18

18

Φ47 X 1500

1.69

110L

58/129/144

YYJ-R011-20

20

Φ47 X 1500

1.88

130L

53/118/133

YYJ-R011-24

24

Φ47 X 1500

2.26

160L

43/97/108

YYJ-R011-30

30

Φ47 X 1500

2.83

200L

35/77/87

YYJ-R011-36

36

Φ47 X 1500

3.40

250L

30/68/75



YYJ-R012-15

15

Φ58 X 1800

1.97

150L

43/86/100

YYJ-R012-18

18

Φ58 X 1800

2.36

180L

39/82/96

YYJ-R012-20

20

Φ58 X 1800

2.62

200L

34/72/84

YYJ-R012-24

24

Φ58 X 1800

3.15

240L

31/65/77

YYJ-R012-30

30

Φ58 X 1800

3.95

300L

22/50/58

YYJ-R012-36

36

Φ58 X 1800

4.75

360L

16/40/43
