Compact Pressurized Solar Water Kits

FOB Reference Price:Get Latest Price
2 Set/Sets (Min. Order)
Supply Ability:
1000 Unit/Units per Week
Port:
SHANGHAI OR NINGBO
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Galvanized steel alloy
Certification:
CE, ISO9001:2000, CCC
Capacity:
200
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EJAI OR OEM
Model Number:
YYJ-IP01
Quality Certification:
ISO, CE, CCC
Guarantee:
5 years for the whole system, 15 years for the vacuum tube
Item:
SOLAR WATER HEATER PRODUCT
Working Temp.:
99 celsius degree
Packaging & Delivery
Packaging Details
Standard export carton packing for full container quantity
Special packing for sample orders(woodencase for the vacuum tubes)
Delivery Time
WITHIN 10-15DAYS AFTER THE DEPOSIT

Specifications

Compact Pressurized Solar Water Kits
1.ISO, CE, CCC
2.15days delivery time
3.15 years life time

Compact Pressurized Solar Water Kits



CHARACTERISTICS



1. Working with high pressure

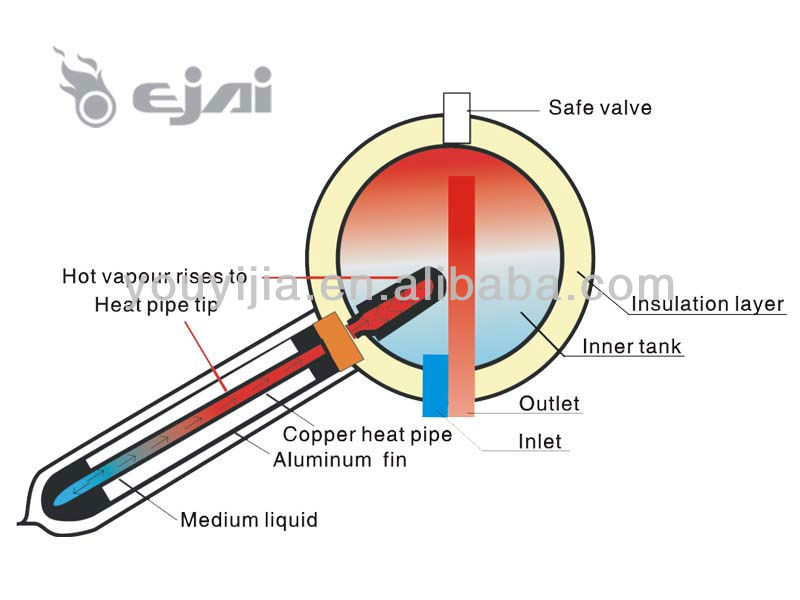

2. Use heat pipe vacuum tube for deliver heat energy, Shorten the time for heating water



3. Hot water coming out with pressure



4. No limitation for the installation position



5. Each tube work alone so it can work even if one of the tube is broken



Material



Inner tank: Imported stainless steel (SUS304/2B), 2mm - 2.5mm thickness



Outer tank: Galvanized steel alloy,0.5mm thickness



Bracket: Galvanized steel alloy, 1.6mm thickness



Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness



Heat Pipe: high quality straight red copper pipe



Working temperature: 99 celsius degree



Working pressure: 0.6Mpa (6 bars)



Color: As per customer's request



Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube





Item No.

Solar Vacuum Tube

Tube                         Coating

Absorber     Area (m2)

Tank         Capacity

Loading Qty / sets

pcs

size / mm

20GP/40GP/40HQ

YYJ-IP01-15

15

Φ58 X 1800

Cu-S/S-AL/N             Heat Pipe

2.044

150L

42/81/92

YYJ-IP01-18

18

Φ58 X 1800

2.26

180L

42/81/92

YYJ-IP01-20

20

Φ58 X 1800

2.72

200L

34/72/84

YYJ-IP01-24

24

Φ58 X 1800

3.27

240L

31/65/77

YYJ-IP01-25

25

Φ58 X 1800

3.41

250L

28/55/65

YYJ-IP01-30

30

Φ58 X 1800

3.91

300L

26/50/60



Remark:



1. Diameter of the tank: 360/460mm



2. Insulation thickness: 50mm



3. Vent Connection: 1/2"



4. Electric heater connection: 1"



5. Water connections: 3/4"



6. Installation angel: 30/45



7. Test Pressure: 1Mpa
